  • UFO280A

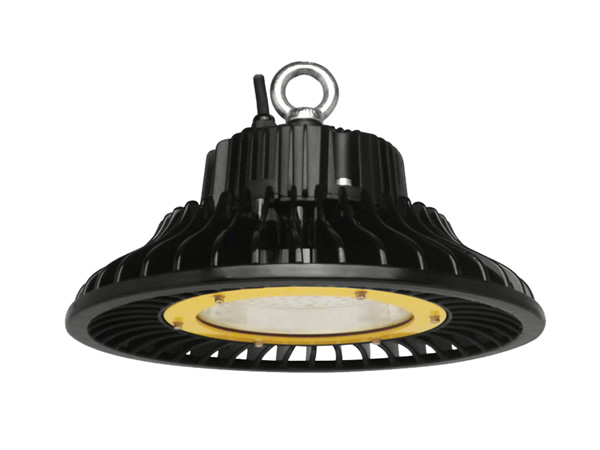

UFO280A
UFO280A  60~120W
UFO280A  60~120W



Shell No Model Certificate Power Size Pcaking/GW Input voltage CCT Luminous efficiency  Beam angle IP Level
UFO280A  SHELL UFO-280A-60W 77 leds ETL/CE 60W ¢280*H117*140mm Ipcs 2.7kg 330*195*330mm Ipcs 4.3kg AC100~240V  50~60Hz 2500k-7000k 130lm/W 50/80 IP65
UFO-280A-80W 105 leds ETL/CE 80W ¢280*H117*140mm Ipcs 2.7kg 330*195*330mm Ipcs 4.3kg AC100~240V  50~60Hz 2500k-7000k 130lm/W 50/80 IP65
UFO-280A-100W 133 leds ETL/CE 100W ¢280*H117*140mm Ipcs 2.7kg 330*195*330mm Ipcs 4.3kg AC100~240V  50~60Hz 2500k-7000k 130lm/W 50/80 IP65
UFO-280A-120W 154 leds ETL/CE 120W ¢280*H117*140mm Ipcs 2.7kg 330*195*330mm Ipcs 4.3kg AC100~240V  50~60Hz 2500k-7000k 130lm/W 50/80 IP65





1:Unique designed UFO shape,lighter and smaller.
2:Nichia &Philips 3030 chip,LM80 standard.
3;Luninous efficiency:110~125lm/w, Meanwell HLG driver .
4:Configurable smart Dimming, galss cover or PC convex cover.
5:Wide aluminum plate desigh, heat dissipation fast and evenly.
6;Ideal mounting height is 8~15M.
7:Angle for flexible bracket:30/60/90/120/150 degree.
8:Installation:Rack mounting & Hook hanging.

1.No pressing or striking.
2.Transport and handle carefully.
3.Pay attention to the voltage before using.

Trade Terms:
1.Payment: T/T (Western Union or Paypal are welcomed).
2.Production lead time  for 100~500pcs: 25days, 500~1000pcs:35days.
3.Sample can be delivered within 3days.
4.Shipping freight are quoted under your requests.
5.Shipping port: Shenzhen, Mainland China.
6.Discounts are offered based on order quantities.
