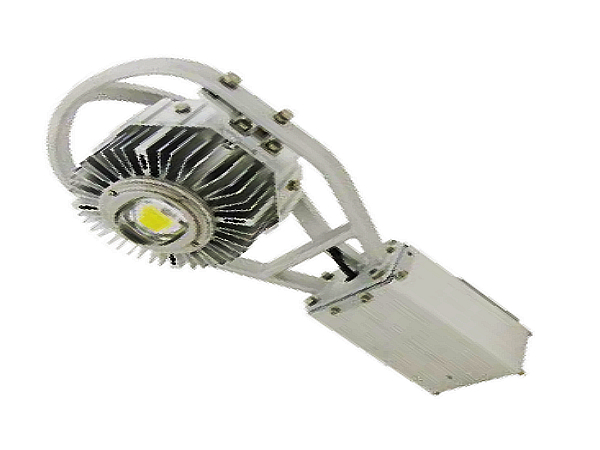

RS600 100~180W
RS600 100~180W


Shell No Model Certificate Power Size Pcaking/GW Input voltage CCT Luminous efficiency  Beam angle IP Level
RS600 SHELL GD-ST-100W-RS600 CE/UL 100W IP65 675*360*245mm 1pcs 8.8kg AC100~277V  50~60Hz 2500k-7000k 100lm/W 120 IP65
GD-ST-120W-RS600 CE/UL 120W IP65 675*360*270mm 1pcs 9.3kg AC100~277V  50~60Hz 2500k-7000k 100lm/W 120 IP65
GD-ST-150W-RS600 CE 150W IP65 675*360*320mm 1pcs10.3kg AC100~277V  50~60Hz 2500k-7000k 100lm/W 120 IP65
GD-ST-180W-RS600 CE 180W IP65 675*360*350mm 1pcs 10.8kg AC100~277V  50~60Hz 2500k-7000k 100lm/W 120 IP65



Product Description:
1. Main structure made by die-custing aluminum,and anti-corrosion treatment on surface.
2. Super thermal transferring materials for main part
3. Toughened glass ,much better effct for lignt passing through,and good against ultra-vio radiation
4. Reflector is made of high purity imported aluminum sheet
5. Protection grade:IP65
6. Rated Power;30W-280W  cold white light
7. Size:small and compact.
8. UL CE Rohs SAA IP65/67 approval products
9. With styrofoam package for option.
10.Used for main road,highway and square etc.

1.No pressing or striking.
2.Transport and handle carefully.
3.Pay attention to the voltage before using.

Trade Terms:
1.Payment: T/T (Western Union or Paypal are welcomed).
2.Production lead time  for 100~500pcs: 25days, 500~1000pcs:35days.
3.Sample can be delivered within 3days.
4.Shipping freight are quoted under your requests.
5.Shipping port: Shenzhen, Mainland China.
6.Discounts are offered based on order quantities.

1:Lamp modle:10/20/30/40W~280W Led street light .
2:Led source:10~280W, Bridgelux chip,COB.10~40W.
4:Payment: T/T.L/C,Western union.
5:Delivery: sample 7 days; mass 10-35days.
6:Validity:15 days with quotation.
7:Packing:carton,inner EPE .
8:Warranty:5 years,lifetime:50000h
9:Min/order:5 pacs

All of our products have attained CE and RoHS certifications. Some of them have UL, TUV or ATX qualifications.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less  than 0.2%.
